Direct Feed Shiploader and Stacker

Bulk material conveyor solution for direct feeding of vessel from wheel loader

  • Jiaozuo Yuxin Machinery Co., Ltd.
  • Products
  • Ship Loader and Stacker
  • Mobile Shiploader and Stacker
  • Direct Feed Shiploader and Stacker
Series
  • Series
  • Series
  • Series
  • Series
  • Series
  • Request a Quote

    The direct feed shiploader we provide is customized to meet the specific needs of each material handling operation, thereby improving the mobility and efficiency of material transportation. Our direct feed loader can adopt various mobile solutions, such as rails or wheels, suitable for different dock or yard environments. This feature ensures that bulk material handling operations can be carried out more effectively, providing a customized solution that significantly improves the efficiency and throughput of the loading process.

    • Loading Capacity
      Loading Capacity0-4000TPH
    • Conveyor Length
      Conveyor Length25- 58m
    • Stockpile Height
      Stockpile Height9.3-18m (maximum height)

    By focusing on the unique conditions of each operational location, we strive to ensure that our ship loading solutions not only meet but also exceed the operational requirements for handling bulk materials. Our goal is to provide efficient and reliable solutions for your bulk processing needs, whether it's optimizing speed, minimizing material spills, or ensuring seamless integration with existing infrastructure.

    Applications

    Suitable for loading bulk materials onto ships and/or stacking them in yards, ranging from aggregates, sand and minerals to coal, sawdust, ore, fertilizers, and grains.

    Specifications
    Loading Capacity 0-4000TPH
    Conveyor Length 25- 58m
    Stockpile Height 9.3-18m (maximum height)
    Drive Electric and fuel
    Mobility Wheel type (in-line, parallel, radial travel)
    Track type (harsh ground conditions)
    Wheels + rail mounted
    Dust Suppression Measures Available as per customer request
    Features

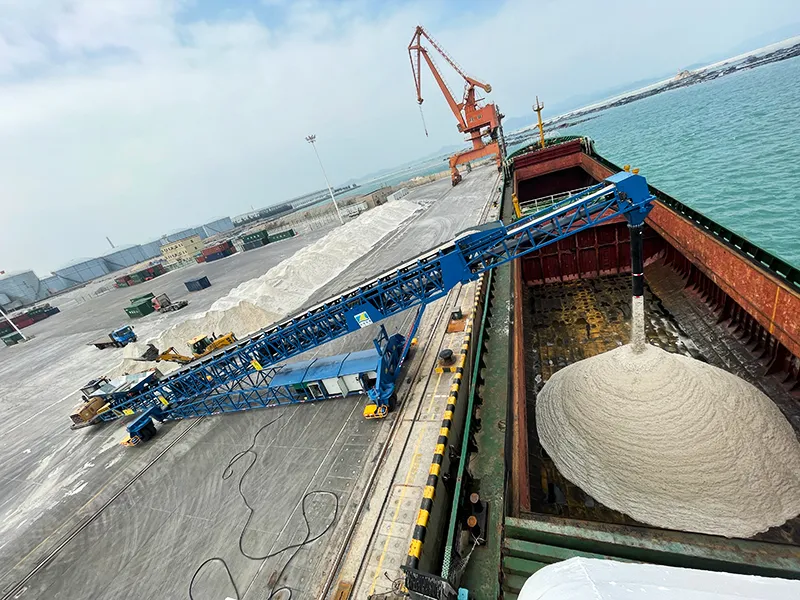

    • Direct feeding into ships from wheel loaders or grab cranes, tailored to meet specific client needs.
    • Custom-designed units offer complete on-site mobility for convenient ship loading and adjustments.

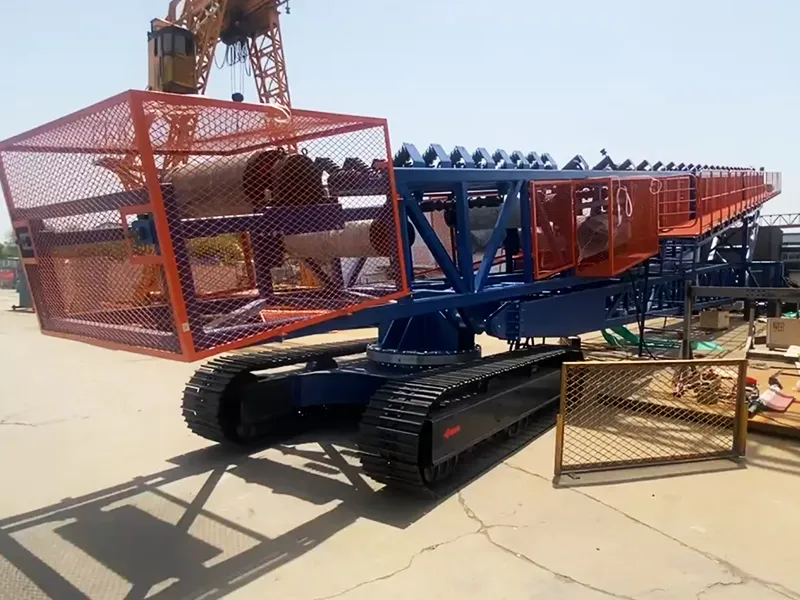

    • Available in tracked, wheeled, and rail-mounted configurations to suit any operational requirement.
    • Eliminates or significantly reduces the need for secondary handling by wheel loaders.
    • Allows for direct unloading from wheel loaders and grabs.
    • Fully mobile for independent operation across the site.
    Customized Conveying Equipment for Bulk Material Handling

    At Yuxin Machinery, we have a team of engineers ready to work with you at any time to evaluate and design the most suitable material handling equipment for your needs, ensuring seamless integration and operation in your current material handling system. From comprehensive conveying systems to individual components, we offer customized design to improve your material handling and processing efficiency.

    Our mobile direct feed loader is designed to improve the efficiency of bulk material transportation. The structure of the loader allows bull dozers at ports or inland terminals to load directly, greatly reducing multiple-transfers. This loading method not only improves productivity, but also reduces the additional manpower requirements on the deck. When it comes to yard operations, these material handling machines act as direct feed stackers, maximizing the transportation efficiency of bulk materials. Compatible with various loading equipment, ensuring continuous and full load operation at the feeding end.

    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    Standard Configurations
    Support Device
    Support Device

    This device uses four heavy rollers for enhanced support to ensure stable operation.

    Lifting Support
    Lifting Support

    Features telescopic support powered by a high-pressure hydraulic cylinder, allowing manual or remote adjustments of the stacker's inclination angle at any time for optimal efficiency.

    Travel Wheel Set
    Travel Wheel Set

    Equipped with four wheels on one side, this set offers stable support and smooth operation. It enhances maneuverability, enabling effortless swing and circular discharging.

    Support Oil Cylinder
    Hydraulic Cylinder Support

    Designed for quick transition between active and idle modes, this cylinder provides solid ground support, facilitates load-free turning, and ensures rapid progression to subsequent operational phases.

    Sliding Cable Tray
    Sliding Cable Tray

    Ensures neat cable organization and secures the power supply for the telescopic section, enhancing operational reliability and minimizing disruption.

    Electrical Control System
    Electrical Control System

    Features a PLC control panel capable of executing various functions like automatic material stacking/discharging in fan or shuttle shapes, as well as automatic lifting, making the functions easy to operate.

    Safety Guard/Hood
    Safety Guard/Hood

    Safety guards are installed on all rotating parts to protect operators and machinery, ensuring a safer work environment and reducing the likelihood of accidents.

    Loading Hopper
    Loading Hopper

    Manufactured with high wear-resistant liners to prolong its lifespan, the hopper is designed for dual-side loading. Its capacity is customizable to meet specific operational needs.

    Safety Protection Device
    Safety Protection Device

    This device offers a reasonable layout with quick response features, effectively minimizing operational risks in a timely manner to safeguard both personnel and equipment.

    Options

    A variety of optional components are available, including rain cover, metal separator, walk way, lighting equipment, dust suppression and removal, generator set, monitoring system, telescopic chute, etc.

    • Walk Way
      Walk Way

      Features a modular design for easy access and easy installation.

    • Monitoring System
      Monitoring System

      Enables remote, real-time monitoring of on-site equipment operations, simplifying data checks and reducing safety management expenses.

    • Electro-Magnetic Separator
      Electro-Magnetic Separator

      Features a compact design for easy installation, with a powerful magnetic force that effectively captures magnetic debris, safeguarding the rubber belt.

    • Lighting Facility
      Lighting Facility

      Equipped at both loading and discharging points, this lighting setup is designed for night operations, offering high efficiency, energy savings, and longevity.

    • Rain Cover
      Rain Cover

      Designed to prevent rainwater infiltration and dust escape, ensuring the stacker remains operational even on rainy days.

    • Belt Scale (Micro-Computerized Nuclear Scale And/Or Common-Used Scale)
      Belt Scale (Micro-computerized nuclear scale and/or common-used scale)

      Offers real-time weighing and remote monitoring, available in both micro-computerized nuclear and standard scales for precise operation tracking.

    • Diesel Generator Set
      Diesel Generator Set

      Guarantees operational autonomy with its own generator, ensuring functionality even without an external power supply.

    • Telescopic Chute
      Telescopic Chute

      Allows effective adjustment of the discharging height and area, providing an eco-friendly and reliable solution for dust control.

    • Telescopic Chuteself-Propelled Device
      Telescopic Chuteself-Propelled Device

      Supports equipment mobility with the ability to navigate curves and turn flexibly, ideal for sites requiring frequent relocations.

    • Walkway Safety Railing
      Walkway Safety Railing
