All Wheel Travel Stacker and Shiploader

Mobile handling equipment for bulk materials

  • Jiaozuo Yuxin Machinery Co., Ltd.
  • Products
  • Ship Loader and Stacker
  • Mobile Shiploader and Stacker
  • All Wheel Travel Stacker and Shiploader
Series
  • Series
  • Series
  • Series
  • Series
  • Series
  • Request a Quote

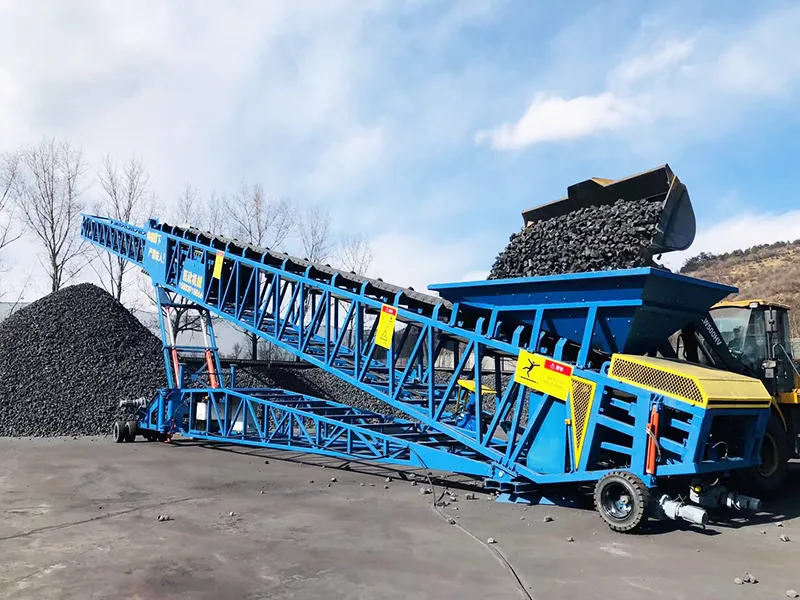

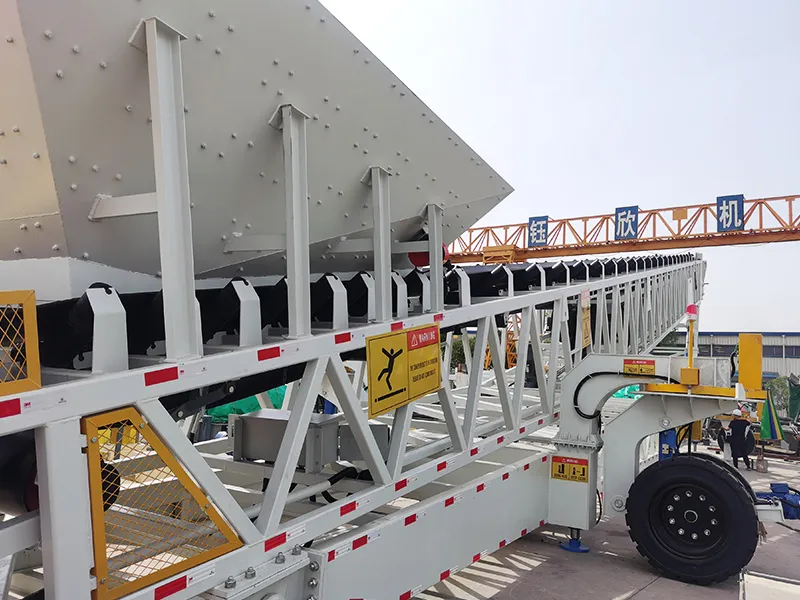

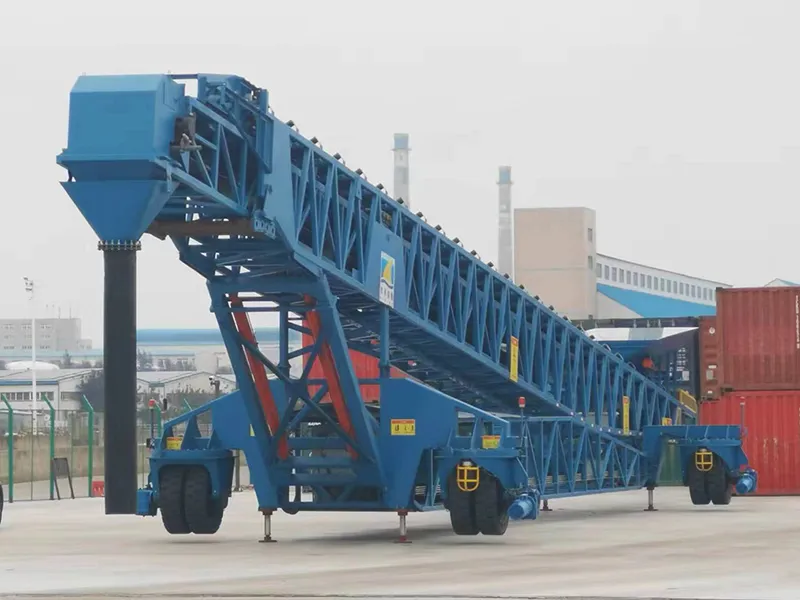

    The all-wheel travel shiploader has high efficiency and flexibility in loading and stacking operations. It is specifically designed for port/dock and yard operations, capable of 360 ° rotation, with low space requirements and adaptability to various ground conditions. This function is crucial for logistics chain, providing port operators with the fastest material handling services from hatch to hatch, and maximizing turning and transportation efficiency within limited space.

    • Loading Capacity
      Loading Capacity0-4000TPH
    • Conveyor Length
      Conveyor Length25- 58m
    • Stockpile Height
      Stockpile Height9.3-18m (maximum height)
    Applications

    Primarily, this shiploader is widely used at ports for loading bulk materials into ships. In various types of yards, it could efficiently handle bulk materials like grains, coal, fertilizers, iron ore, copper ore, bauxite, concentrates, aggregates, sand, wood chips, sawdust, cement clinker, sulfur, and more, and optimize stacking heights & process.

    Specifications
    Loading Capacity 0-4000TPH
    Conveyor Length 25- 58m
    Stockpile Height 9.3-18m (maximum height)
    Drive Electric and fuel
    Mobility Wheel type (in-line, parallel, radial travel)
    Track type (harsh ground conditions)
    Wheels + rail mounted
    Dust Suppression Measures Available as per customer request
    Features
    • Its all-wheel movement is convenient for positioning.
    • The top cover on conveyor could guarantee running continuously in bad weather.
    • The side cover on conveyor & the telescopic chute could guarantee the precise unloading and keep no spilling to reduce the loss.
    • The dust suppression system and wireless remote control could simplify operation and make it both efficient and convenient for users.
    Customized Conveying Equipment for Bulk Material Handling

    Yuxin well-experienced engineers work together with clients to design and evaluate the material handling equipment that is specific to their specific requirements, ensuring that everything from the entire equipment to individual components can be integrated into existing applications. Our material handling system is a professional product that can move at flexible speeds and provide adaptable solution in different situations, such as ports/docks, warehouses, and yards.

    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    Standard Configurations
    Support Device
    Support Device

    This device uses four heavy rollers for enhanced support to ensure stable operation.

    Lifting Support
    Lifting Support

    Features telescopic support powered by a high-pressure hydraulic cylinder, allowing manual or remote adjustments of the stacker's inclination angle at any time for optimal efficiency.

    Travel Wheel Set
    Travel Wheel Set

    Equipped with four wheels on one side, this set offers stable support and smooth operation. It enhances maneuverability, enabling effortless swing and circular discharging.

    Support Oil Cylinder
    Hydraulic Cylinder Support

    Designed for quick transition between active and idle modes, this cylinder provides solid ground support, facilitates load-free turning, and ensures rapid progression to subsequent operational phases.

    Sliding Cable Tray
    Sliding Cable Tray

    Ensures neat cable organization and secures the power supply for the telescopic section, enhancing operational reliability and minimizing disruption.

    Electrical Control System
    Electrical Control System

    Features a PLC control panel capable of executing various functions like automatic material stacking/discharging in fan or shuttle shapes, as well as automatic lifting, making the functions easy to operate.

    Safety Guard/Hood
    Safety Guard/Hood

    Safety guards are installed on all rotating parts to protect operators and machinery, ensuring a safer work environment and reducing the likelihood of accidents.

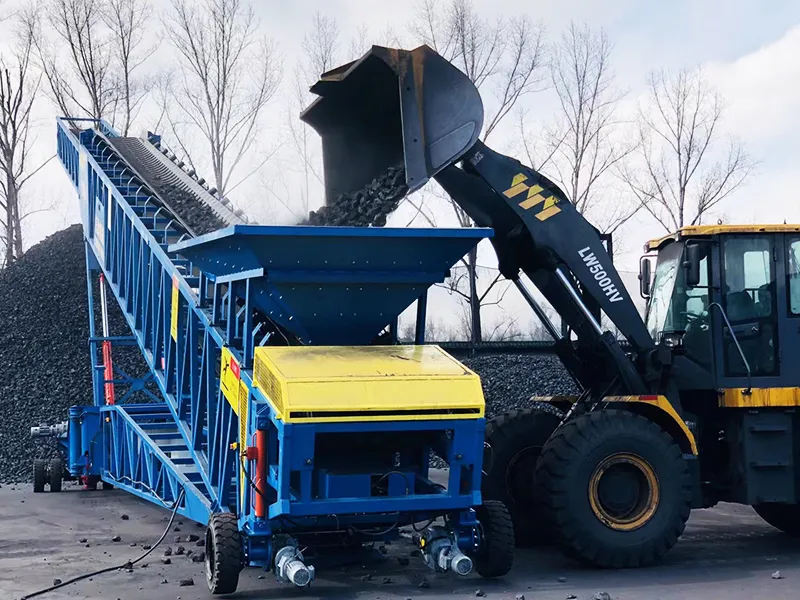

    Loading Hopper
    Loading Hopper

    Manufactured with high wear-resistant liners to prolong its lifespan, the hopper is designed for dual-side loading. Its capacity is customizable to meet specific operational needs.

    Safety Protection Device
    Safety Protection Device

    This device offers a reasonable layout with quick response features, effectively minimizing operational risks in a timely manner to safeguard both personnel and equipment.

    Options

    A variety of optional components are available, including rain cover, metal separator, walk way, lighting equipment, dust suppression and removal, generator set, monitoring system, telescopic chute, etc.

    • Walk Way
      Walk Way

      Features a modular design for easy access and easy installation.

    • Monitoring System
      Monitoring System

      Enables remote, real-time monitoring of on-site equipment operations, simplifying data checks and reducing safety management expenses.

    • Electro-Magnetic Separator
      Electro-Magnetic Separator

      Features a compact design for easy installation, with a powerful magnetic force that effectively captures magnetic debris, safeguarding the rubber belt.

    • Lighting Facility
      Lighting Facility

      Equipped at both loading and discharging points, this lighting setup is designed for night operations, offering high efficiency, energy savings, and longevity.

    • Rain Cover
      Rain Cover

      Designed to prevent rainwater infiltration and dust escape, ensuring the stacker remains operational even on rainy days.

    • Belt Scale (Micro-Computerized Nuclear Scale And/Or Common-Used Scale)
      Belt Scale (Micro-computerized nuclear scale and/or common-used scale)

      Offers real-time weighing and remote monitoring, available in both micro-computerized nuclear and standard scales for precise operation tracking.

    • Diesel Generator Set
      Diesel Generator Set

      Guarantees operational autonomy with its own generator, ensuring functionality even without an external power supply.

    • Telescopic Chute
      Telescopic Chute

      Allows effective adjustment of the discharging height and area, providing an eco-friendly and reliable solution for dust control.

    • Telescopic Chuteself-Propelled Device
      Telescopic Chuteself-Propelled Device

      Supports equipment mobility with the ability to navigate curves and turn flexibly, ideal for sites requiring frequent relocations.

    • Walkway Safety Railing
      Walkway Safety Railing
