In the port and terminal industry, ship loaders are quite important. With the continuous growth of global trade, ports, as key hubs for the import and export of goods, are facing various challenges. Traditional loading and unloading methods have low efficiency, high labor costs, and high safety risks, requiring innovative solutions to improve overall operational efficiency.
As a key focus, Yuxin Machinery provides ship loaders aimed at addressing these industry challenges. Our ship loading and unloading system integrates advanced automation and intelligent control systems, which not only greatly accelerates the loading and unloading process, reduces labor demand, but also reduces operational risks, ensuring a safer workplace. Our solution is not only a technological advancement, but also a step towards a sustainable future for the port industry.
Yuxin develops and manufactures different types of material handling equipment, which can be easily integrated into existing conveying systems or used as independent units. The development of these solutions is aimed at optimizing the operation of ports and terminals, making cargo handling more efficient, secure, and economical.

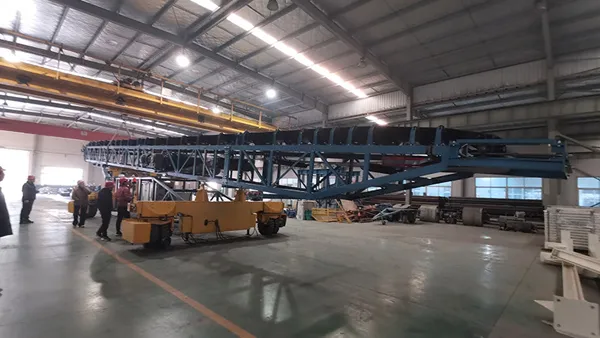

Ship Loading Project Requiring Wide Working Angle and Height Range
A 25-meter mobile conveyor with a built-in generator and four-wheel drive enables free movement in all directions, including lateral, longitudinal, and rotational movement, as well as +45° and -45° adjustments for optimal positioning. Equipped with an external mobile hopper, the system allows smooth transitions between material transfer and loading operations. The built-in tilting system enables vertical adjustments, reaching a maximum upward movement of 4 meters and a stacking height of 7.9 meters, ensuring efficient and adaptable ship loading performance.
Loading capacity | 650t/h | Total length | 25m |
Material density | 0.65t/m³ | Telescopic length | 0m |
Belt width | 1000mm | Pile height | 7.9m |
Belt speed | 3.15m/s | Inclination angle | 4.5°-16° |
Total power | 2*37kW | Working height | 4.1-7.8m |
Rail Mounted Telescopic Shiploader Used in Indonesia
A 33-meter rail-mounted telescopic shiploader, designed for port operations in Indonesia, features a 1,200mm belt width and a handling capacity of 1,000 tons per hour. With a stacking height of 10.3 meters, it allows flexible material loading through a tilting range of 9° to 17°. The shiploader is equipped with a dual-level walkway, providing easy access to both upper and lower platforms for safe operation and maintenance. Its telescopic design enhances adaptability, ensuring efficient and precise loading in port environments.
Loading capacity | 1000t/h | Total length | 33m |
Material density | 0.85t/m³ | Telescopic length | 9.3m |
Belt width | 1200mm | Pile height | 10.3m |
Belt speed | 4m/s | Inclination angle | 9°-17° |
Total power | 120kW | Swing angle | 270° |
Ship Loading Project at Port of Palembang, Sumatra, Indonesia
The shiploader at the Port of Palembang features a main conveyor length of 33.5 meters, with an additional 12.5-meter telescopic extension, resulting in a maximum roller center distance of 46 meters. Designed for efficient bulk handling, it operates with a 1,200mm belt width, a belt speed of 4m/s, and a rated capacity of at least 1,000 tons per hour.
With a feeding height of up to 3.25 meters at the tail and a maximum discharge height of 12 meters at the head, the system ensures smooth material flow. Powered by a 195kW motor, it runs on 380V, 50Hz electrical specifications.
This shiploader supports longitudinal and lateral movement, with a fixed tail section for stable radial swing operations. Movement control is operated via remote control or manual push-button commands, providing flexible and precise material loading.
Kibing Glass Company (Fujian)’s Ship Loading Project at Dongshan Port
The ship loading project for Kibing Glass Company at Dongshan Port is an example of how advanced material handling technology has a significant impact on the port industry. This project features a ship loader with a belt width of 1000mm and a belt speed adjustable from 0 to 3.5m/s. The entire conveying unit has 47.9m in length, 6.8m in width, and stands 15.5m tall, capable of handling unloading heights from 5 to 14m. Using variable frequency motorized pulley, the conveying capacity can reach 1400 tons/hour.
The loader is equipped with a telescopic boom that moves at a speed of 0.1m/s, a hydraulic lifting system that can be adjusted between 8-18°, and four-wheel drive that moves at a speed of up to 0.2m/s, making it highly flexible. Its design can move left and right, move back and forth, and even turn, making it very suitable for effectively managing different stacking and loading tasks at different heights and angles.
Ship Loading Project in Jambi, Indonesia
The ship loading project in Jambi, Indonesia shows a comprehensive solution for efficient coal handling and transportation. This project includes a mobile ship loader of BW1000mm and a truck unloader of BW1200mm, achieving a ship loading capacity of 600 tons/hour. A key feature of this device is the main truss design, which allows equipment to be transported to the destination port in a 40ft container, demonstrating innovative methods of logistics and assembly.
Ashapura Minechem’s Ship Loading Project at Guinea Port
The Ashapura Minechem ship loading project at the Port of Guinea was launched in December 2019, where Yuxin provided a customized approach to solve the complex material handling needs. After in-depth discussions and on-site analysis, our team has designed a unique ship loader system. It includes three belt conveyors of BW1400mm, capable of moving 1200 tons of material at a speed of 2.5m/s per hour. These conveyors are 128.83 meters long and can lift materials up to 9.86 meters high. A prominent feature is the expandability of the conveying head, which improves the flexibility of operation.
A truss structure was used for bulk material handling system, and the durability and stability of the system were analyzed using Ansys software. This analysis ensures that all components are assembled smoothly and without interference in 3D settings, demonstrating Yuxin’s commitment to providing efficient and reliable material handling solutions.
Ship Loading Project at Wharf in Qingtian County, Zhejiang Province
The ship loading project at Qingtian County Port in Zhejiang Province is an impressive initiative funded by the Qingtian County Government, aimed at handling an impressive annual throughput of up to 1.5 million tons. This project includes 6 lines of ship loading conveyor of BW1200 and a rated capacity of 1000 tons per hour, indicating a significant improvement in operational efficiency and capacity.
Each ship loading system includes a series of components, such as the pitch arm frame system, gantry, pitch mechanism, conveyor belt, electrical room, operator cabin, and control system. This comprehensive setup aims to facilitate ship loading operations for bulk carriers of up to 5000 tons, demonstrating our ability to meet a large number of logistics needs in a precise and reliable manner. This project not only improves the loading efficiency of the port, but also makes significant contributions to the local economy by promoting smoother and faster trade operations.
