Rail Mounted Stacker and Shiploader

Bulk material handling equipment for stacking materials in ports and stockyards

  • Jiaozuo Yuxin Machinery Co., Ltd.
  • Products
  • Ship Loader and Stacker
  • Mobile Shiploader and Stacker
  • Rail Mounted Stacker and Shiploader

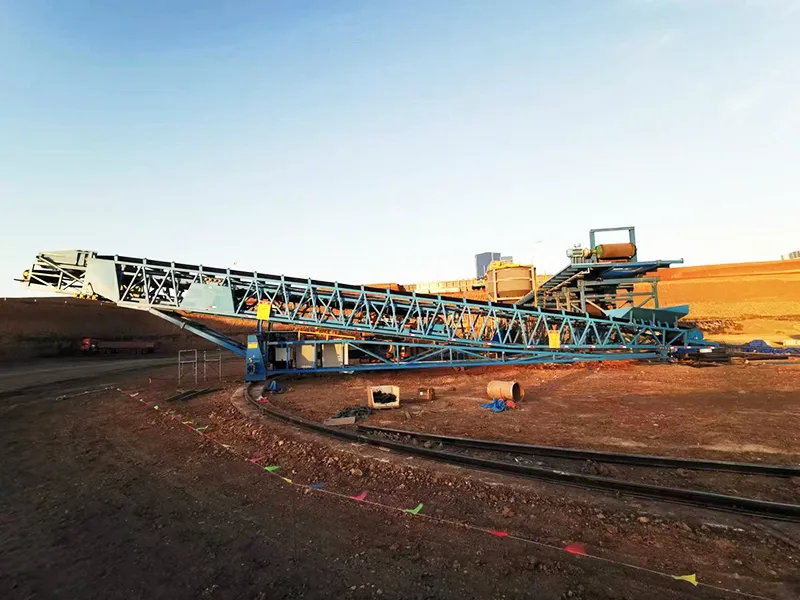

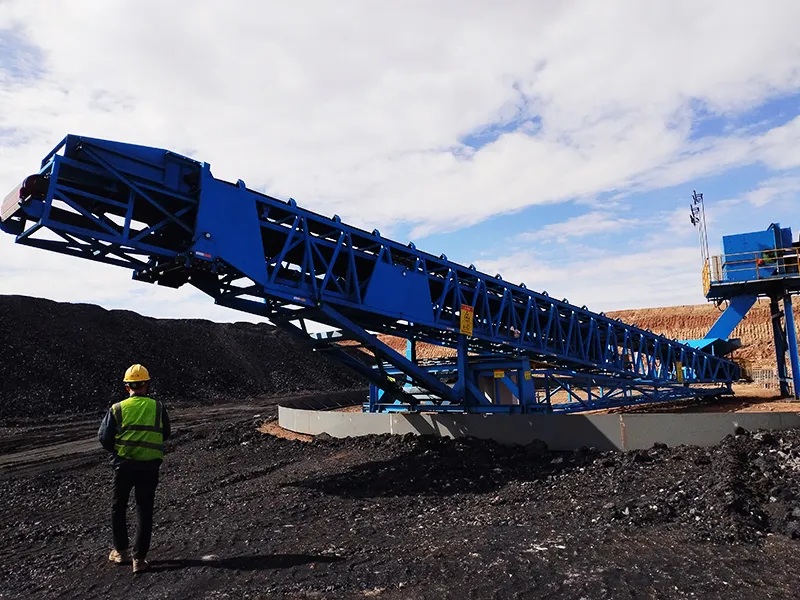

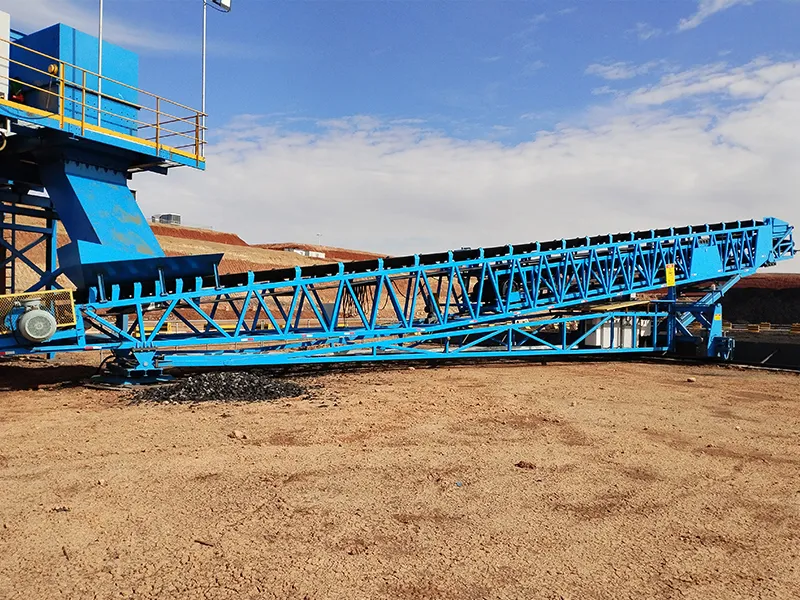

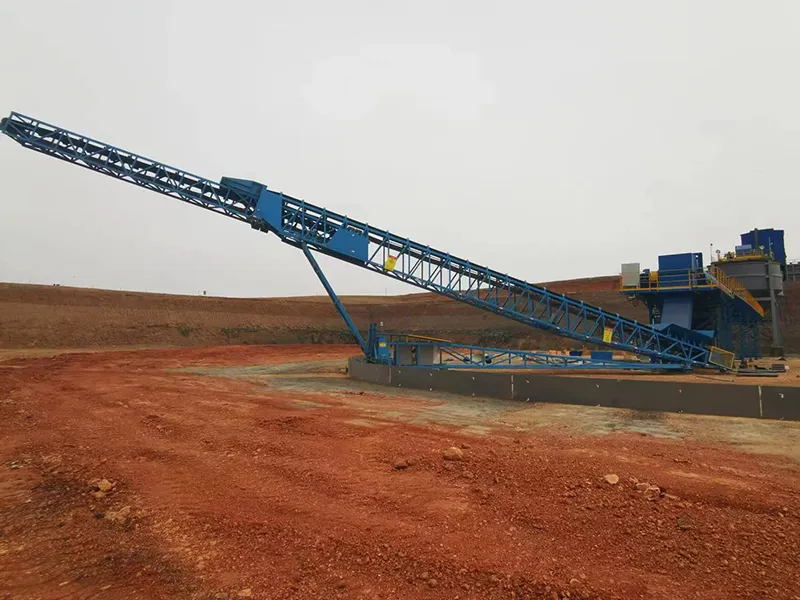

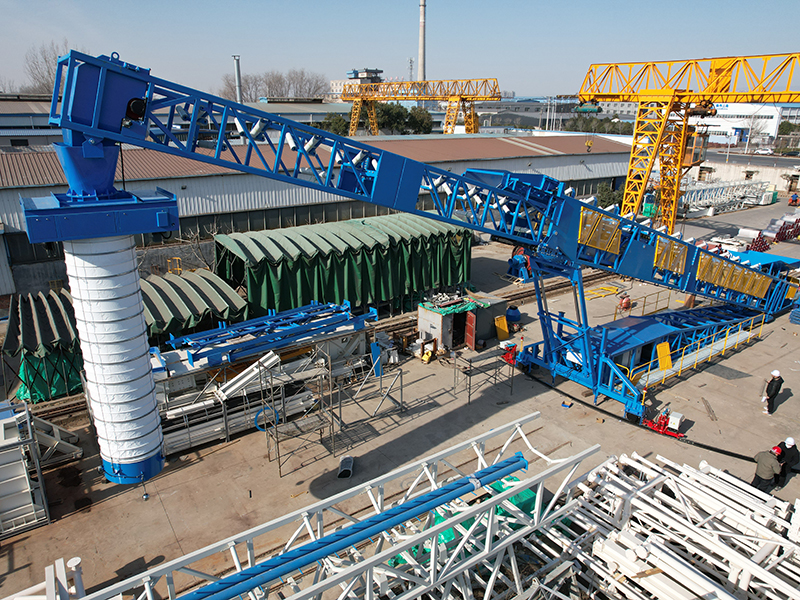

Rail Mounted Stacker and Shiploader
  • Rail Mounted Stacker and Shiploader
  • Rail Mounted Stacker and Shiploader
  • Rail Mounted Stacker and Shiploader
  • Rail Mounted Stacker and Shiploader
  • Rail Mounted Stacker and Shiploader
  • Request a Quote

    The rail-mounted ship loader is an innovative supplement to our ship loading systems, which brings a new level of mobility to port handling equipment. This shiploading system is designed to meet various operational requirements, providing flexibility and reliability even under the harshest weather conditions.

    Specially designed for frequent handling of repetitive transferring and stockpiling in yards, our rail-mounted ship loading equipment thrives on hardened ground. Its design simplifies directional changes and eliminates the need to adjust direction or wheel direction. This ability to easily turn and adjust angles at any time greatly improves the convenience of the material yard, making operations smoother and more efficient.

    • Loading Capacity
      Loading Capacity0-4000TPH
    • Conveyor Length
      Conveyor Length25- 58m
    • Stockpile Height
      Stockpile Height9.3-18m (maximum height)
    Applications

    The integrated loading equipment enables the bulk material handling smoothly and easily in port/docks and yards. So the rail mounted stacker is capable of handling various materials, such as coal, grains, fertilizers, ores (iron, copper, gold, bauxite), aggregates, wood chips, wood particles, sulfur, cement clinker, and so on.

    Specifications
    Loading Capacity 0-4000TPH
    Conveyor Length 25- 58m
    Stockpile Height 9.3-18m (maximum height)
    Drive Electric and fuel
    Mobility Wheel type (in-line, parallel, radial travel)
    Track type (harsh ground conditions)
    Wheels + rail mounted
    Dust Suppression Measures Available as per customer request
    Features
    • The radial slewing and telescopic functions are very convenient for most sizes of ships and yards.
    • This equipment could travel smoothly from the dock to yard and transfer rapidly between hatches to meet the various stacking needs of the yard.
    • The loading capacity can reach up to 4000TPH.
    Customized Conveying Equipment for Bulk Material Handling

    This bulk material handling system is customizable and provides comprehensive support from development to operation, suitable for different types of bulk materials, adaptable to different port and yard conditions, thereby shortening port loading and yard stacking time and reducing material transportation costs.

    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    Standard Configurations
    Support Device
    Support Device

    This device uses four heavy rollers for enhanced support to ensure stable operation.

    Lifting Support
    Lifting Support

    Features telescopic support powered by a high-pressure hydraulic cylinder, allowing manual or remote adjustments of the stacker's inclination angle at any time for optimal efficiency.

    Travel Wheel Set
    Travel Wheel Set

    Equipped with four wheels on one side, this set offers stable support and smooth operation. It enhances maneuverability, enabling effortless swing and circular discharging.

    Support Oil Cylinder
    Hydraulic Cylinder Support

    Designed for quick transition between active and idle modes, this cylinder provides solid ground support, facilitates load-free turning, and ensures rapid progression to subsequent operational phases.

    Sliding Cable Tray
    Sliding Cable Tray

    Ensures neat cable organization and secures the power supply for the telescopic section, enhancing operational reliability and minimizing disruption.

    Electrical Control System
    Electrical Control System

    Features a PLC control panel capable of executing various functions like automatic material stacking/discharging in fan or shuttle shapes, as well as automatic lifting, making the functions easy to operate.

    Safety Guard/Hood
    Safety Guard/Hood

    Safety guards are installed on all rotating parts to protect operators and machinery, ensuring a safer work environment and reducing the likelihood of accidents.

    Loading Hopper
    Loading Hopper

    Manufactured with high wear-resistant liners to prolong its lifespan, the hopper is designed for dual-side loading. Its capacity is customizable to meet specific operational needs.

    Safety Protection Device
    Safety Protection Device

    This device offers a reasonable layout with quick response features, effectively minimizing operational risks in a timely manner to safeguard both personnel and equipment.

    Options

    A variety of optional components are available, including rain cover, metal separator, walk way, lighting equipment, dust suppression and removal, generator set, monitoring system, telescopic chute, etc.

    • Walk Way
      Walk Way

      Features a modular design for easy access and easy installation.

    • Monitoring System
      Monitoring System

      Enables remote, real-time monitoring of on-site equipment operations, simplifying data checks and reducing safety management expenses.

    • Electro-Magnetic Separator
      Electro-Magnetic Separator

      Features a compact design for easy installation, with a powerful magnetic force that effectively captures magnetic debris, safeguarding the rubber belt.

    • Lighting Facility
      Lighting Facility

      Equipped at both loading and discharging points, this lighting setup is designed for night operations, offering high efficiency, energy savings, and longevity.

    • Rain Cover
      Rain Cover

      Designed to prevent rainwater infiltration and dust escape, ensuring the stacker remains operational even on rainy days.

    • Belt Scale (Micro-Computerized Nuclear Scale And/Or Common-Used Scale)
      Belt Scale (Micro-computerized nuclear scale and/or common-used scale)

      Offers real-time weighing and remote monitoring, available in both micro-computerized nuclear and standard scales for precise operation tracking.

    • Diesel Generator Set
      Diesel Generator Set

      Guarantees operational autonomy with its own generator, ensuring functionality even without an external power supply.

    • Telescopic Chute
      Telescopic Chute

      Allows effective adjustment of the discharging height and area, providing an eco-friendly and reliable solution for dust control.

    • Telescopic Chuteself-Propelled Device
      Telescopic Chuteself-Propelled Device

      Supports equipment mobility with the ability to navigate curves and turn flexibly, ideal for sites requiring frequent relocations.

    • Walkway Safety Railing
      Walkway Safety Railing
