Stacker / Barge / Shiploading Direct From Trucks

Bulk material conveyor solution for loading barge or vessel directly from dump truck

  • Jiaozuo Yuxin Machinery Co., Ltd.
  • Products
  • Ship Loader and Stacker
  • Mobile Shiploader and Stacker
  • Stacker / Barge / Shiploading Direct From Trucks
Series
  • Series
  • Series
  • Series
  • Series
  • Request a Quote

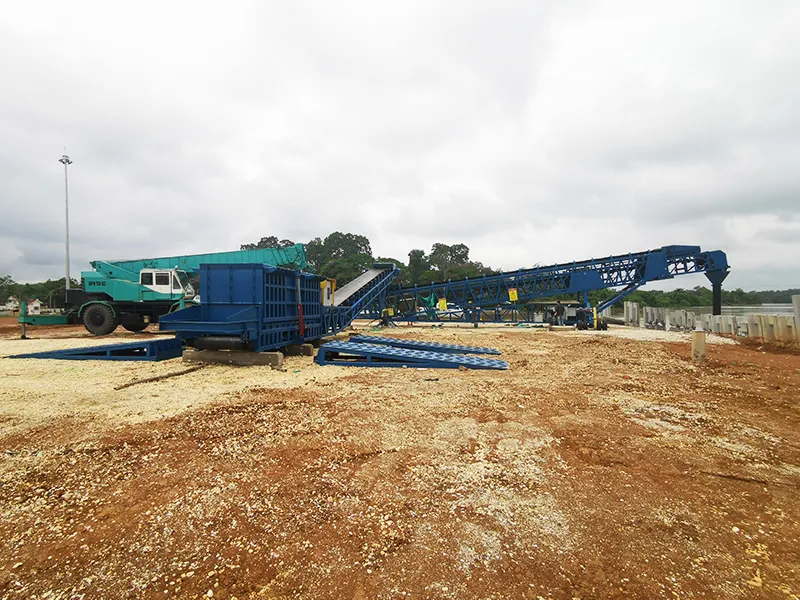

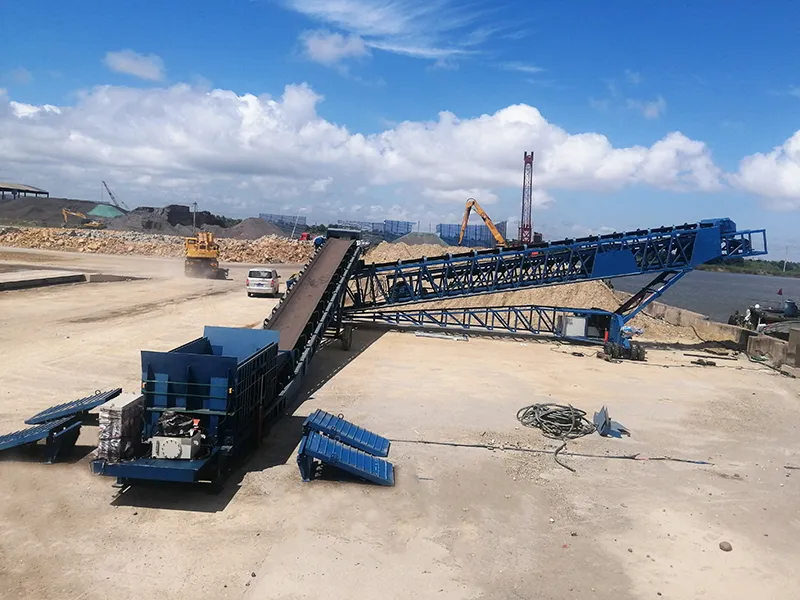

    Yuxin Machinery could use a combination of various conveying equipment from truck to barges/trains/yards, i.e., unloading materials from dump trucks to the ship loader directly, then transporting materials to destination (barges/trains/yards) directly. There is no stacking in this process so that the processing time is shortened and conveying efficiency is maximized. This combination includes two or more devices, and Yuxin Machinery will make special configuration according to clients’ on-site needs to ensure maximum efficiency improvement.

    • Loading Capacity
      Loading Capacity0-4000TPH
    • Conveyor Length
      Conveyor Length25- 58m
    • Stockpile Height
      Stockpile Height9.3-18m (maximum height)

    We have many years of manufacturing experience in the material handling equipment, which enables us to produce and design this kind of equipment and/or system to the unique needs of our customers. Whether it involves two or more types of equipment, we can customize each solution to ensure that customers get the maximum benefit from the material handling process. Our goal is to ensure that our solution could meet the expectations and significantly improve the operational efficiency.

    Applications
    • Directly transfer bulk materials from loaders and/or trucks to ships and/or storage yard, optimizing loading and stacking workflows.
    • Support ship unloading operations provided by grab cranes.
    • Transfer materials from various vehicles directly and continuously.
    • By using dump trucks or wheel loaders, bulk materials can be effectively stacked in the yard.
    • Feed materials from the wheel loader into the conveyor system to improve the speed and efficiency of the material handling process.
    Specifications
    Loading Capacity 0-4000TPH
    Conveyor Length 25- 58m
    Stockpile Height 9.3-18m (maximum height)
    Drive Electric and fuel
    Mobility Wheel type (in-line, parallel, radial travel)
    Track type (harsh ground conditions)
    Wheels + rail mounted
    Dust Suppression Measures Available as per customer request
    Features
    • This type of mobile shiploader is compatible with a wide range of trucks, including self-dumping and mining trucks, due to its versatile unloading capabilities.
    • Features rotating and lifting capabilities for automated stacking operations.
    • Can be mounted on tracks or wheels, providing exceptional mobility.
    • Eliminates the need for temporary storage by enabling direct truck-to-ship loading.
    • Reduces civil engineering work, offering cost savings on projects.
    Customized Conveying Equipment for Bulk Material Handling

    Each set of our material handling equipment is designed to fit your specific operation site requirements, ensuring that bulk materials are transported and transferred efficiently, reliably, and safely. We are committed to tailoring our conveying systems to match your operational needs, guaranteeing that our material handling solutions not only meet but exceed your expectations in streamlining your material handling processes.

    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    • Customized mechanical conveying equipment
    Standard Configurations
    Support Device
    Support Device

    This device uses four heavy rollers for enhanced support to ensure stable operation.

    Lifting Support
    Lifting Support

    Features telescopic support powered by a high-pressure hydraulic cylinder, allowing manual or remote adjustments of the stacker's inclination angle at any time for optimal efficiency.

    Travel Wheel Set
    Travel Wheel Set

    Equipped with four wheels on one side, this set offers stable support and smooth operation. It enhances maneuverability, enabling effortless swing and circular discharging.

    Support Oil Cylinder
    Hydraulic Cylinder Support

    Designed for quick transition between active and idle modes, this cylinder provides solid ground support, facilitates load-free turning, and ensures rapid progression to subsequent operational phases.

    Sliding Cable Tray
    Sliding Cable Tray

    Ensures neat cable organization and secures the power supply for the telescopic section, enhancing operational reliability and minimizing disruption.

    Electrical Control System
    Electrical Control System

    Features a PLC control panel capable of executing various functions like automatic material stacking/discharging in fan or shuttle shapes, as well as automatic lifting, making the functions easy to operate.

    Safety Guard/Hood
    Safety Guard/Hood

    Safety guards are installed on all rotating parts to protect operators and machinery, ensuring a safer work environment and reducing the likelihood of accidents.

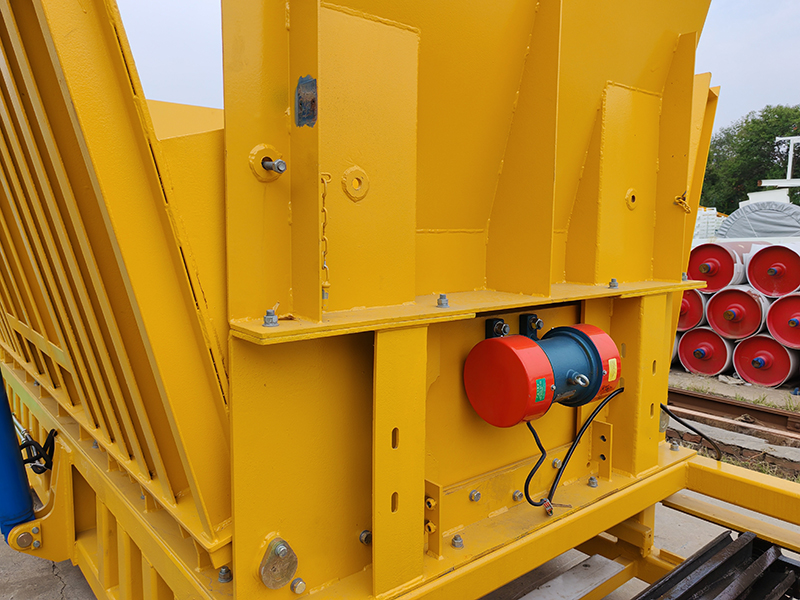

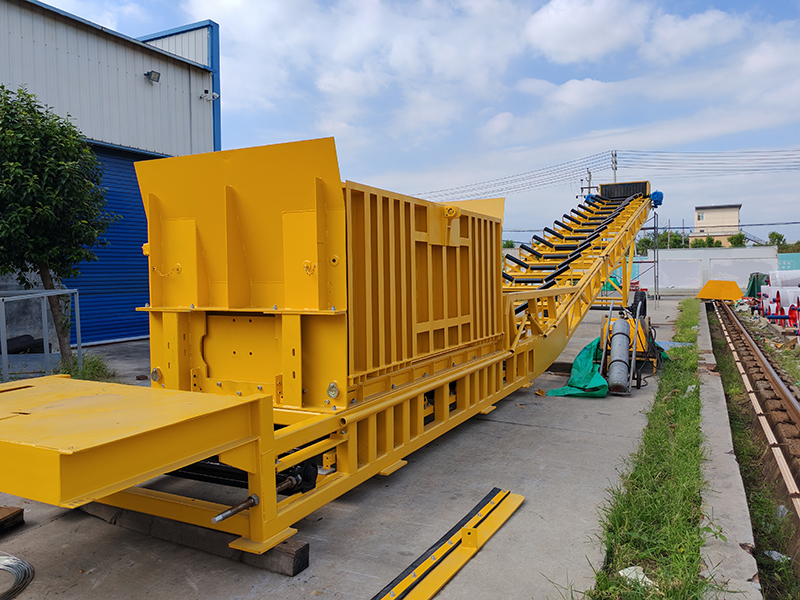

    Loading Hopper
    Loading Hopper

    Manufactured with high wear-resistant liners to prolong its lifespan, the hopper is designed for dual-side loading. Its capacity is customizable to meet specific operational needs.

    Safety Protection Device
    Safety Protection Device

    This device offers a reasonable layout with quick response features, effectively minimizing operational risks in a timely manner to safeguard both personnel and equipment.

    Options

    A variety of optional components are available, including rain cover, metal separator, walk way, lighting equipment, dust suppression and removal, generator set, monitoring system, telescopic chute, etc.

    • Walk Way
      Walk Way

      Features a modular design for easy access and easy installation.

    • Monitoring System
      Monitoring System

      Enables remote, real-time monitoring of on-site equipment operations, simplifying data checks and reducing safety management expenses.

    • Electro-Magnetic Separator
      Electro-Magnetic Separator

      Features a compact design for easy installation, with a powerful magnetic force that effectively captures magnetic debris, safeguarding the rubber belt.

    • Lighting Facility
      Lighting Facility

      Equipped at both loading and discharging points, this lighting setup is designed for night operations, offering high efficiency, energy savings, and longevity.

    • Rain Cover
      Rain Cover

      Designed to prevent rainwater infiltration and dust escape, ensuring the stacker remains operational even on rainy days.

    • Belt Scale (Micro-Computerized Nuclear Scale And/Or Common-Used Scale)
      Belt Scale (Micro-computerized nuclear scale and/or common-used scale)

      Offers real-time weighing and remote monitoring, available in both micro-computerized nuclear and standard scales for precise operation tracking.

    • Diesel Generator Set
      Diesel Generator Set

      Guarantees operational autonomy with its own generator, ensuring functionality even without an external power supply.

    • Telescopic Chute
      Telescopic Chute

      Allows effective adjustment of the discharging height and area, providing an eco-friendly and reliable solution for dust control.

    • Telescopic Chuteself-Propelled Device
      Telescopic Chuteself-Propelled Device

      Supports equipment mobility with the ability to navigate curves and turn flexibly, ideal for sites requiring frequent relocations.

    • Walkway Safety Railing
      Walkway Safety Railing
