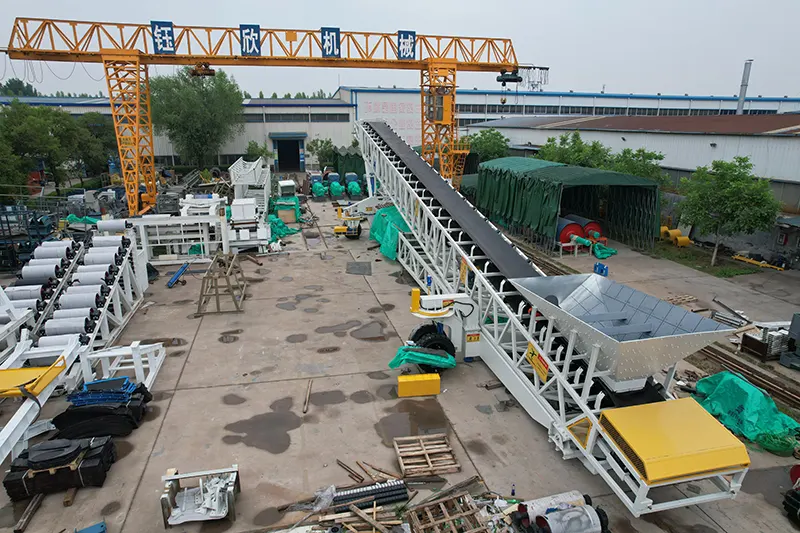

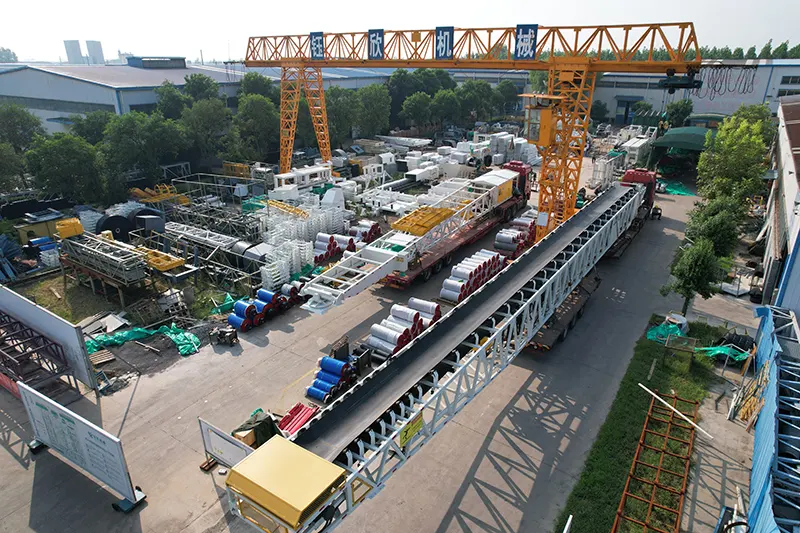

The shiploader at the Port of Palembang features a main conveyor length of 33.5 meters, with an additional 12.5-meter telescopic extension, resulting in a maximum roller center distance of 46 meters. Designed for efficient bulk handling, it operates with a 1,200mm belt width, a belt speed of 4m/s, and a rated capacity of at least 1,000 tons per hour.

With a feeding height of up to 3.25 meters at the tail and a maximum discharge height of 12 meters at the head, the system ensures smooth material flow. Powered by a 195kW motor, it runs on 380V, 50Hz electrical specifications.

This shiploader supports longitudinal and lateral movement, with a fixed tail section for stable radial swing operations. Movement control is operated via remote control or manual push-button commands, providing flexible and precise material loading.
