Ship Loading Project Requiring Wide Working Angle and Height Range
Ship Loading Project Requiring Wide Working Angle and Height Range
  • Ship Loading Project Requiring Wide Working Angle and Height Range
  • Ship Loading Project Requiring Wide Working Angle and Height Range

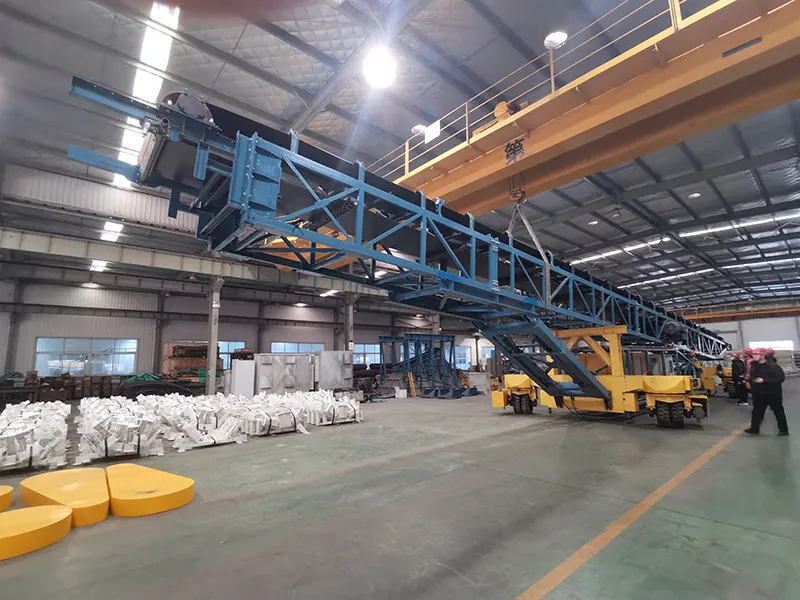

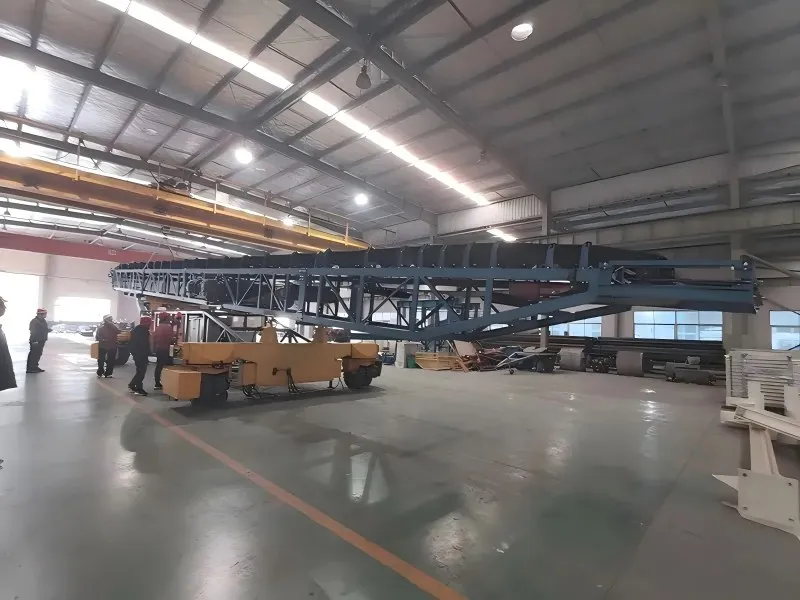

  • A 25-meter mobile conveyor with a built-in generator and four-wheel drive enables free movement in all directions, including lateral, longitudinal, and rotational movement, as well as +45° and -45° adjustments for optimal positioning. Equipped with an external mobile hopper, the system allows smooth transitions between material transfer and loading operations. The built-in tilting system enables vertical adjustments, reaching a maximum upward movement of 4 meters and a stacking height of 7.9 meters, ensuring efficient and adaptable ship loading performance.

    Request a Quote
    Loading capacity 650t/h Total length 25m
    Material density 0.65t/m³ Telescopic length 0m
    Belt width 1000mm Pile height 7.9m
    Belt speed 3.15m/s Inclination angle 4.5°-16°
    Total power 2*37kW Working height 4.1-7.8m
    Recommended Equipment
      1. All Wheel Travel Stacker and Shiploader
      2. All Wheel Travel Stacker and Shiploader It is specifically designed for port/dock and yard operations, capable of 360 ° rotation, with low space requirements and adaptability to various ground conditions. View More
