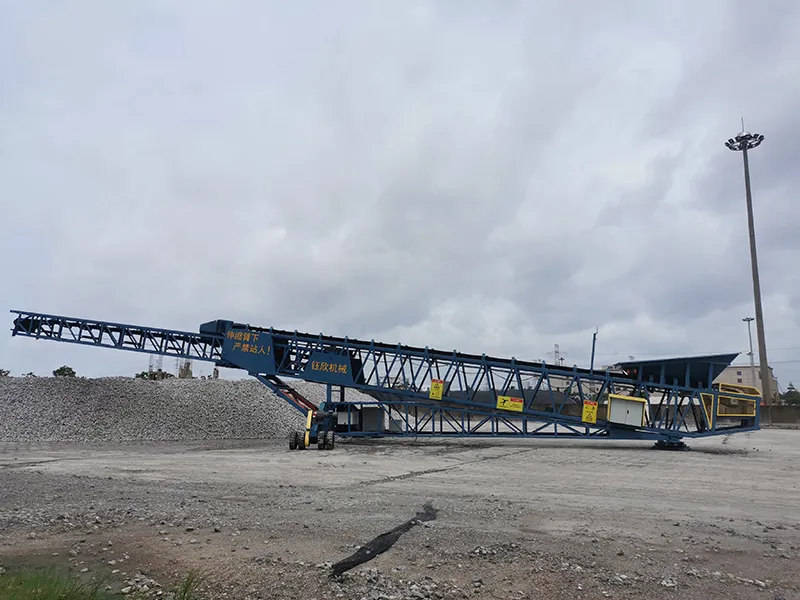

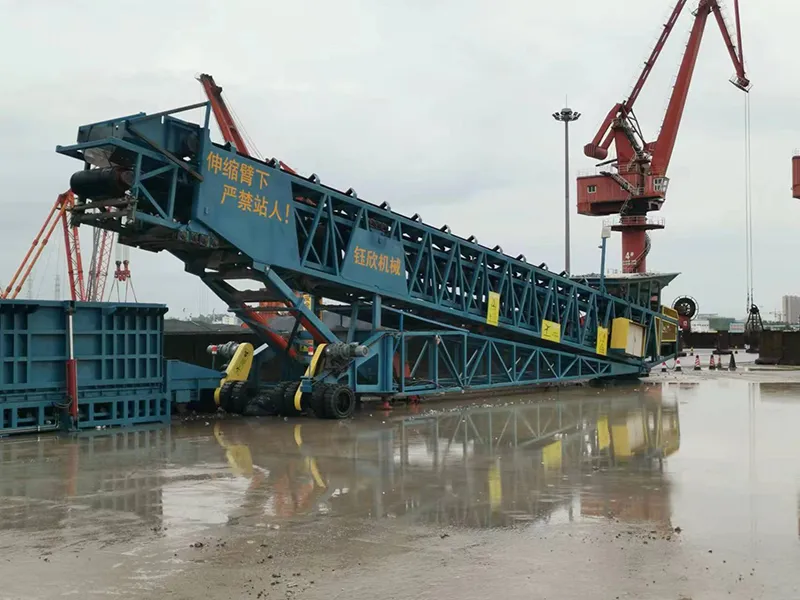

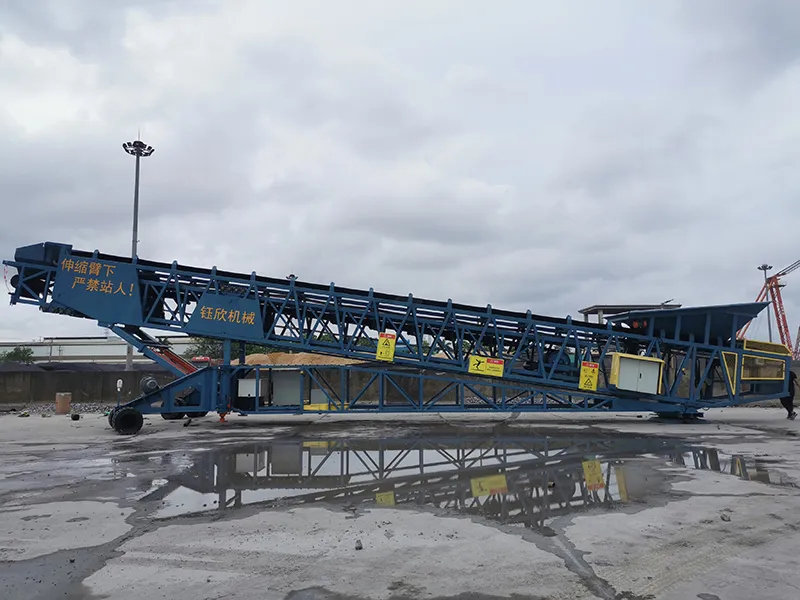

This project has a rated throughput capacity of 600 t/h and is specifically designed for materials with a bulk density of 1600 kg/m³. It is equipped with a 1000 mm-wide conveyor belt, with belt speed adjustable from 0 to 2.0 m/s.

To achieve efficient coverage and material stockpiling, the machine has a total length of 33 meters and features a 10.5-meter telescopic stroke. It supports a 270° slewing angle and luffing angle adjustment from 8° to 17°, allowing a maximum stacking height of 10 meters. The system operates with a total operating power of 80 kW, balancing operational efficiency and energy consumption while providing reliable material handling for port stacking operations.
