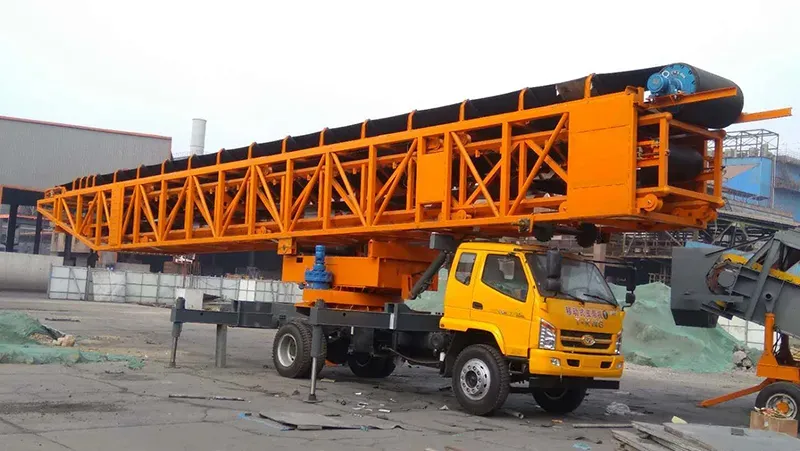

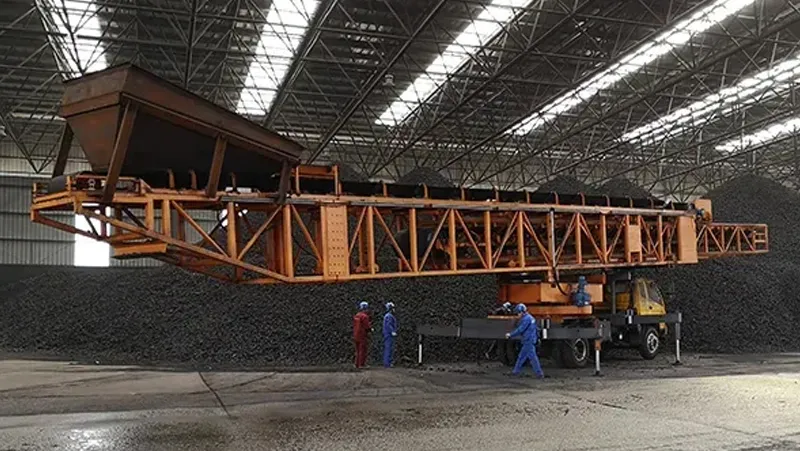

For the Shaanxi Longmen Company project, we supplied a portable conveyor system designed for efficiency and adaptability. The conveyor features a belt with a width of B1000mm and a speed of 2.5 m/s, reaching a material conveyance capacity of 500t/h, ensuring rapid material handling. We engineered the portable conveyor system for versatility with a lifting height of 6m, adjustable horizontal lengths from 10 to 21.6m, and material distribution heights between 6.2 to 9.2m, complemented by an input height of 3m.

Request a Quote

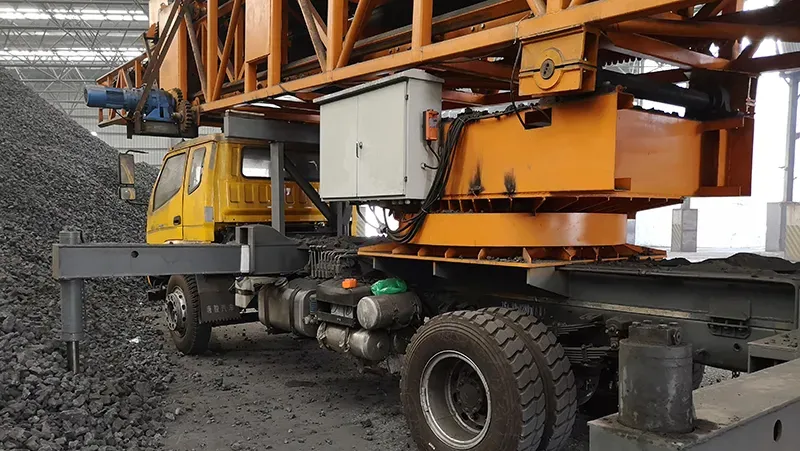

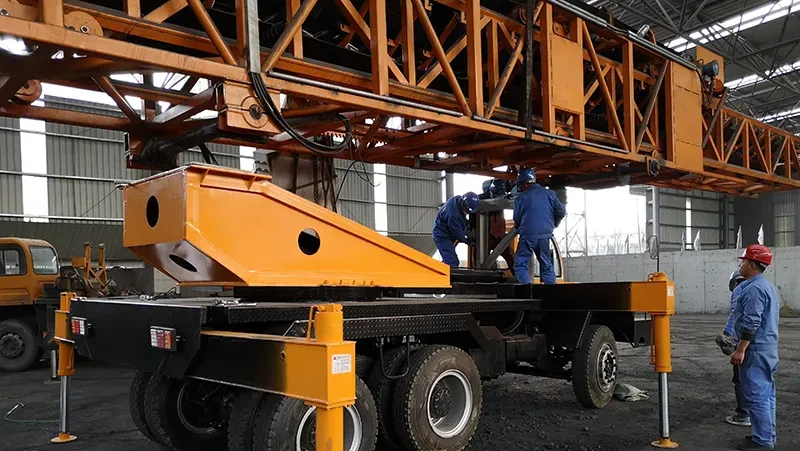

The system's rotation capability of ±175°, powered by dual 30kW motors, a 5.5kW extension motor, and a 1.5kW rotation motor, offers unparalleled operational flexibility. With extension and rotation speeds set at 0.2m/s and one rotation per minute respectively, it provides precise control over material flow. Mounted on a Tang Jun chassis, the mobile unit can travel between 5 to 10km/h, and features a hopper with a volume of 8 to 10m³, suitable for a wide range of industrial needs due to its robust and efficient design.
